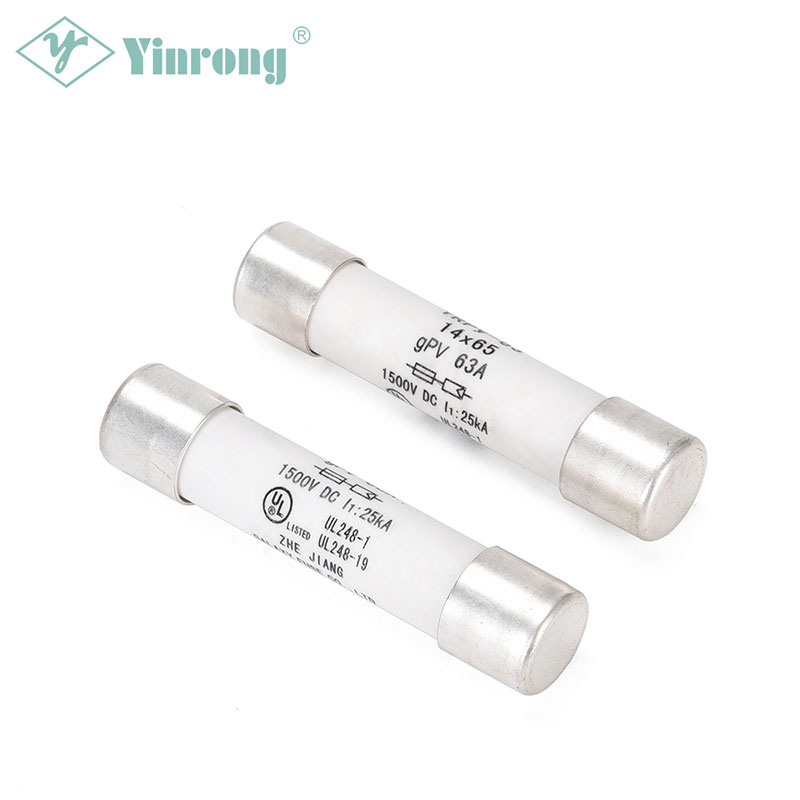

1500VDC 63A 14×65mm Solar PV Fuse Link

YRPV-63 1500VDC Solar PV Fuse Link is specifically designed to protect the Photovoltaic (PV) systems. This unique 14×65 mm cylindrical fuse link makes it ideal for continuous current cycling and effectively protects the 1500VDC Photovoltaic (PV) systems. 1500VDC 63A 14×65 mm Solar PV Fuse Link provides high ampere rating protection of 10A to 63A in small spaces to increase application flexibility. We specialize in professional R & D capacity and quality control. Zhejiang Galaxy Fuse Co., Ltd. (Yinrong) is continuously innovating Solar Photovoltaic (PV) Fuses and working to create safer circuits around the world.

Features & Benefits of YRPV-63 1500VDC Solar PV Fuse Link

• 1500VDC Photovoltaic (PV) system is available

• 10-63A ampere ratings available

• Meets UL248-19 Photovoltaic standard for global acceptance

• Unique cylindrical construction (14×65mm) offers maximum 63A in smaller dimension

• High energy efficiency with low power dissipation performance

• DIN Rail mountable

• 25kA breaking capacity approved by UL
